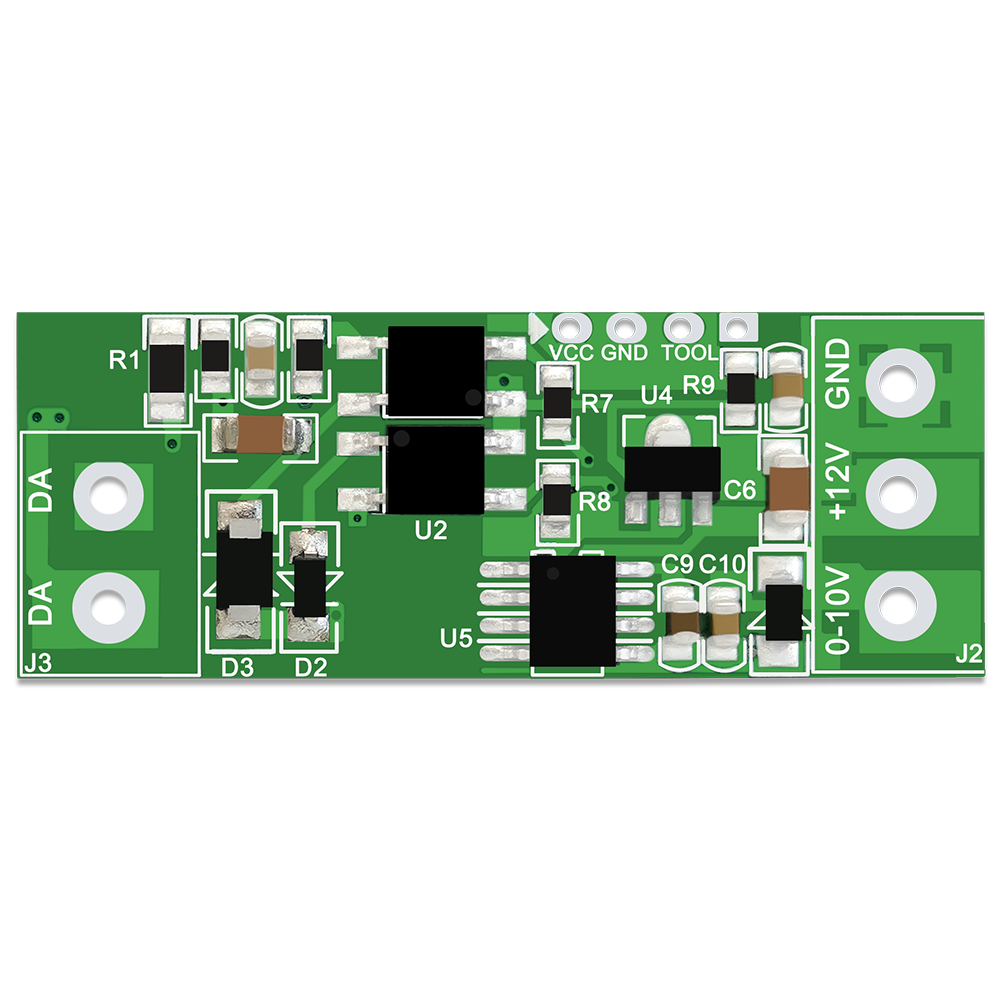

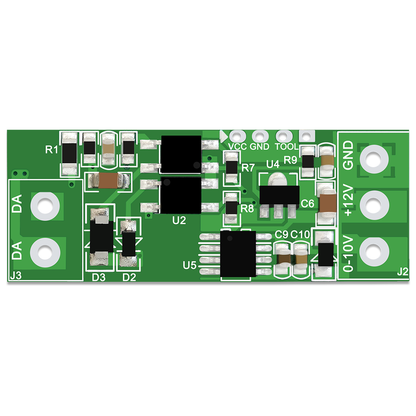

DALI-2 to 0-10V Converter Modules Solutions

Key Features

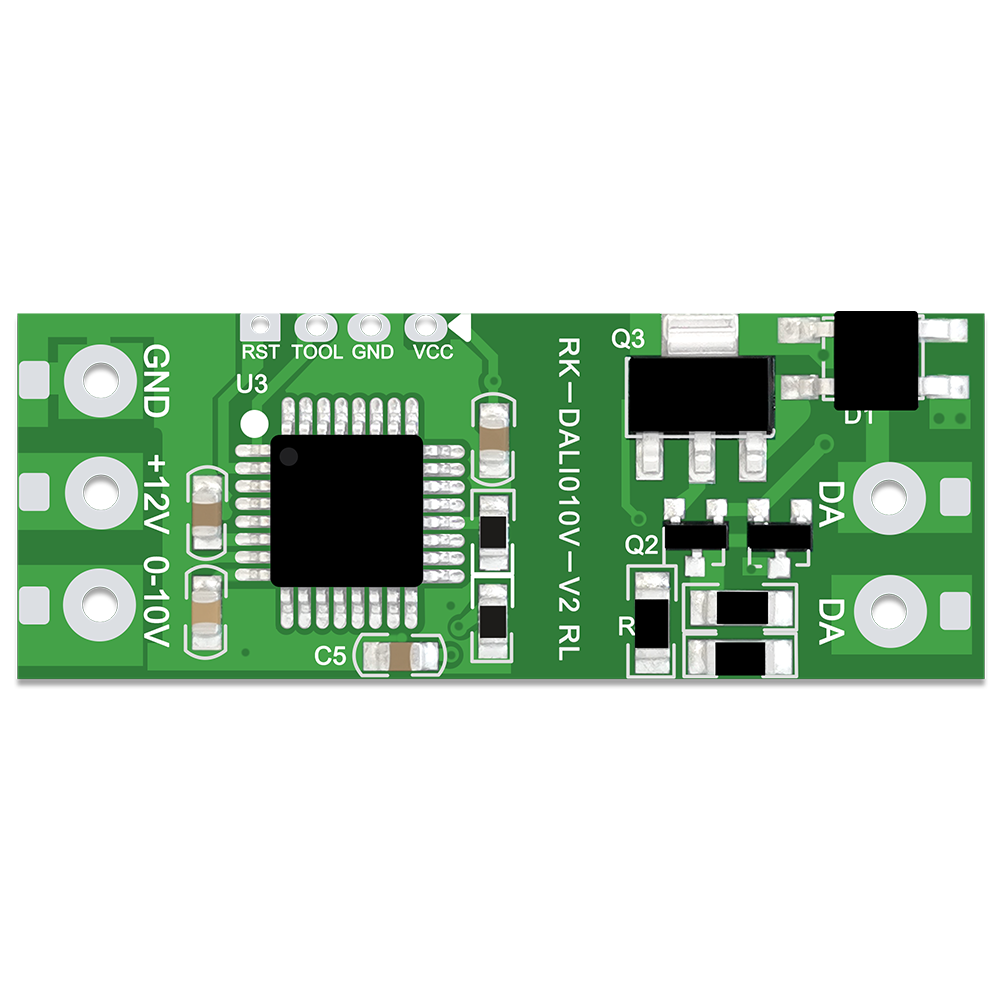

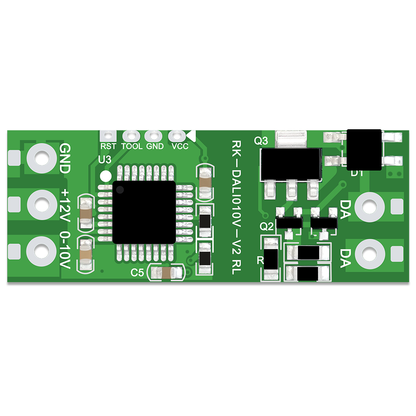

• Model: RK-DALI010V-V2
• Supported Protocols: IEC62386-101, IEC62386-102, IEC62386-207.
• Supported Functions: DALI and 0-10V output funtions.
• Power Supply: DC 5V, higher than 20mA.
• DALI Interface: Voltage: 9.5V to 22.5V (DALI PS BUS);
• Current: 1.9mA; Isolation Voltage from Control Circuit: 3000VAC.
• 0-10V Output:  1 channel of 0-10V output, with a default minimum voltage value of 1V (customizable), and a maximum output current of 15mA.
• Working Temperature: -40~80 °C.

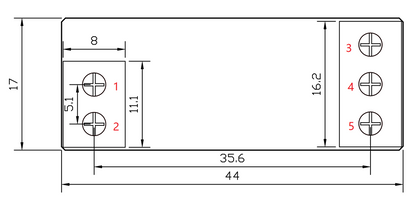

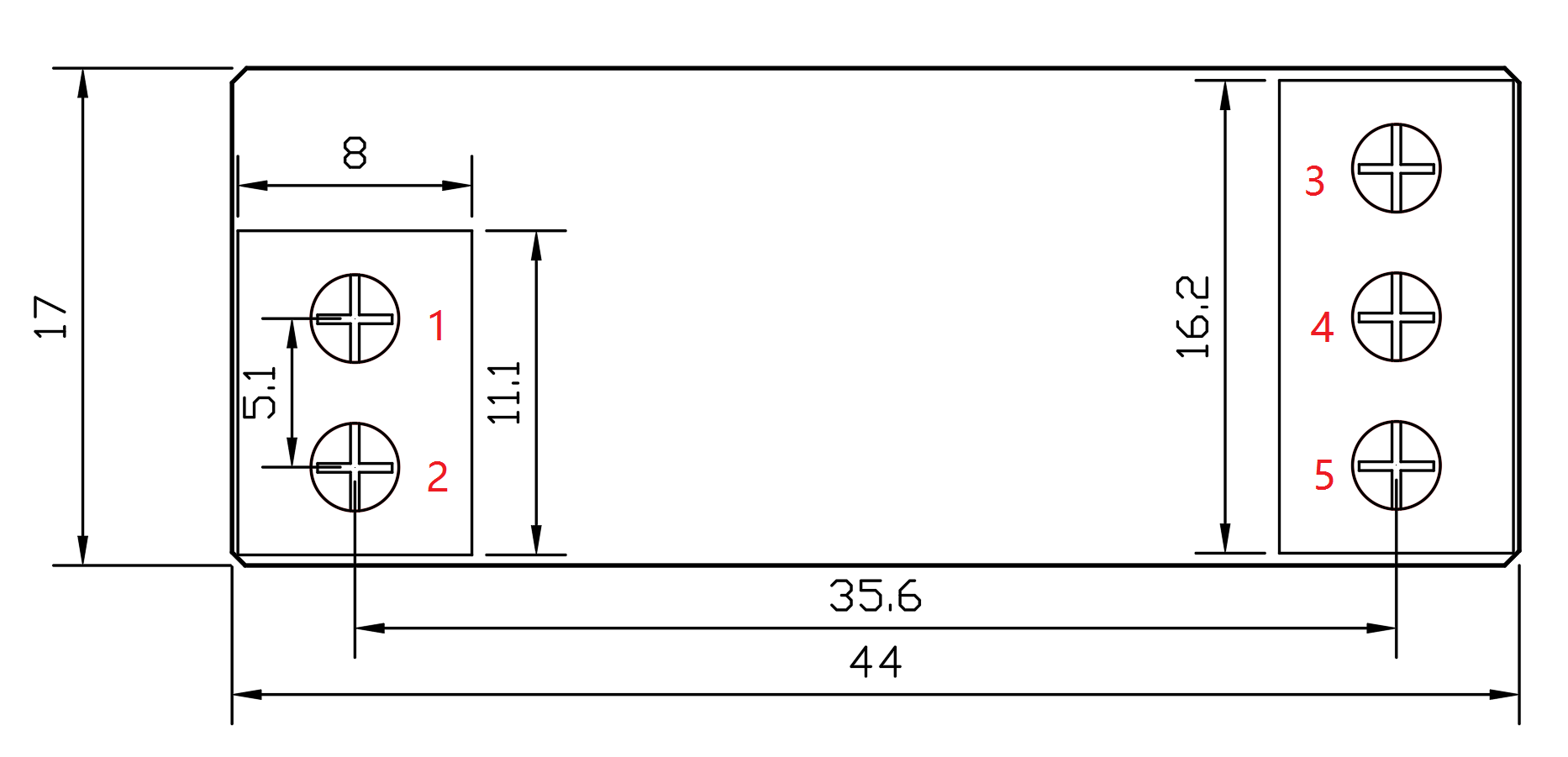

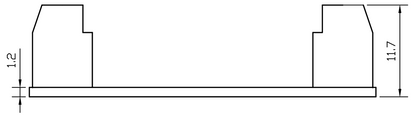

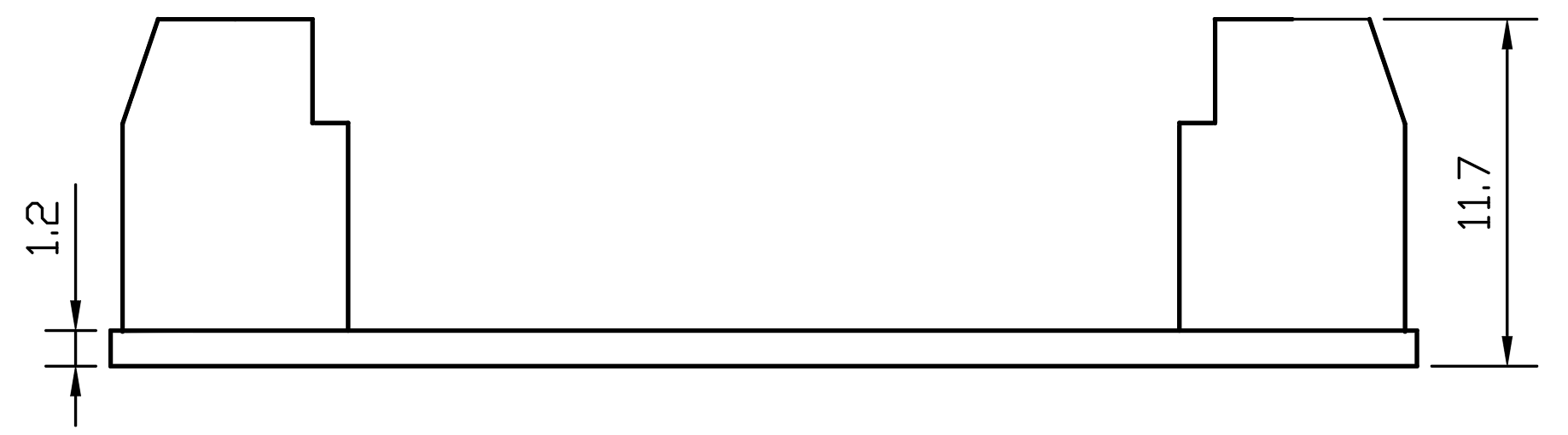

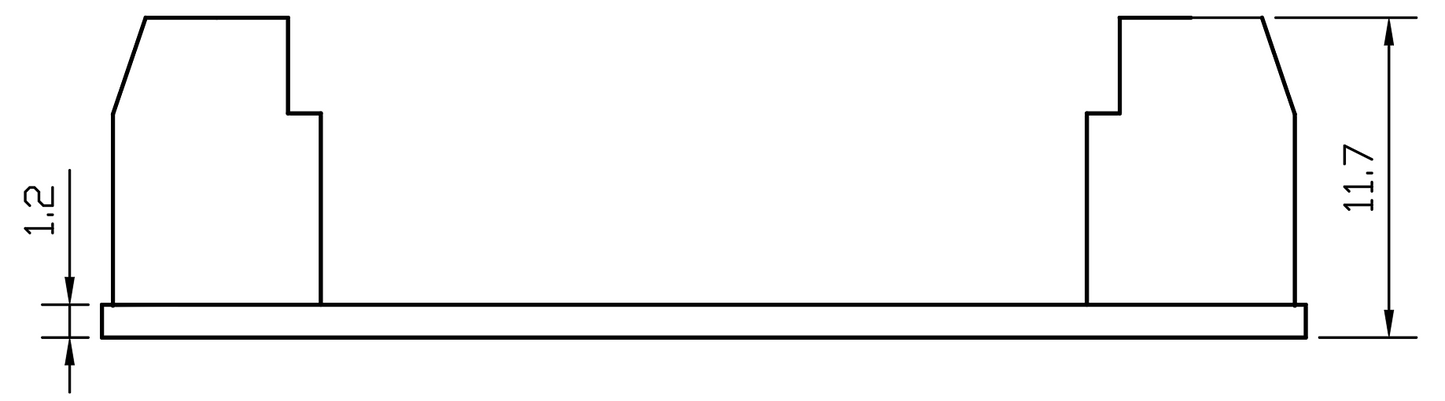

• Board Size: 44X17X12mm.
• Installation Method: Gold finger/Pin header.
• Module Protection: 260V Overvoltage Protection for DALI Interface.

For bulk purchases, the price is negotiable.
