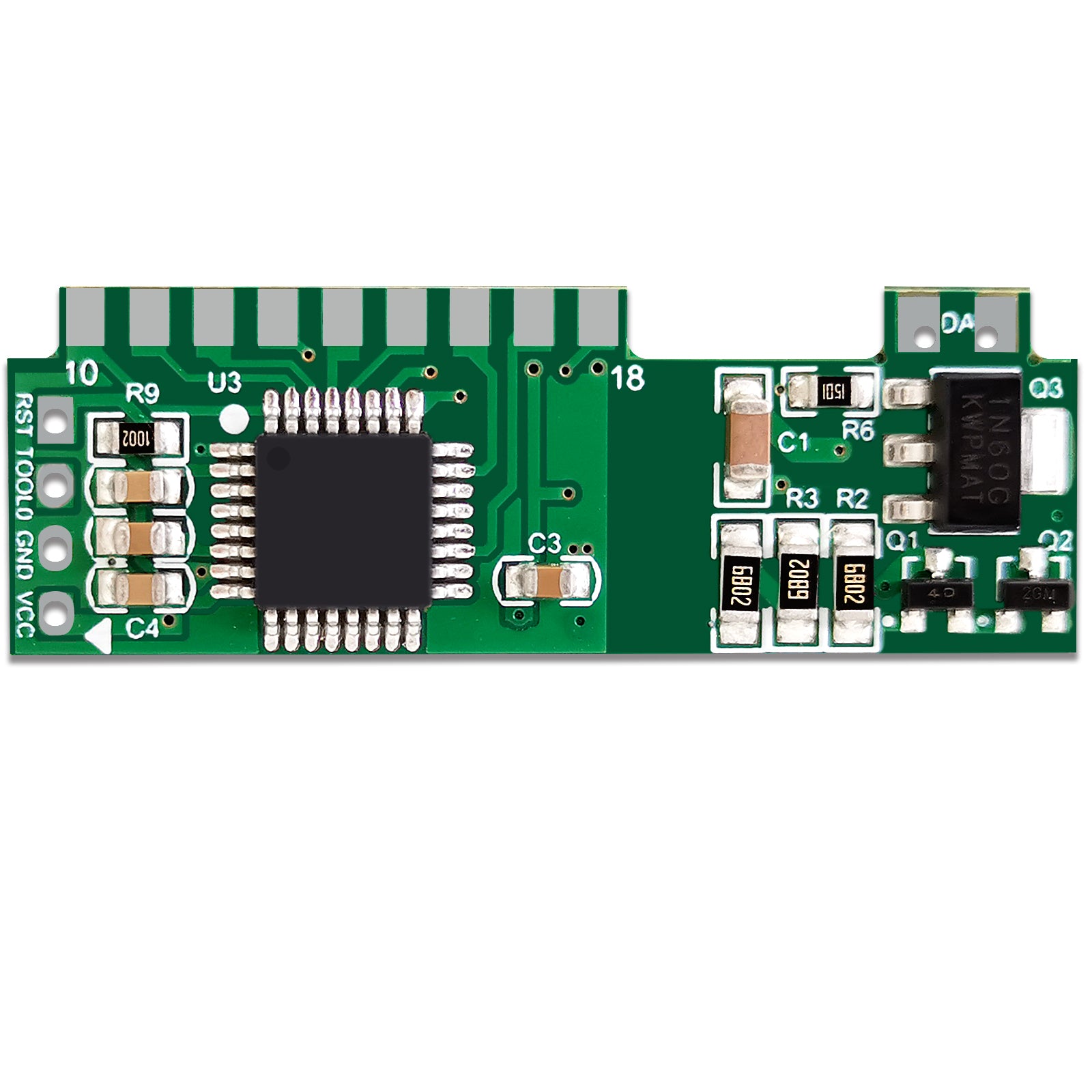

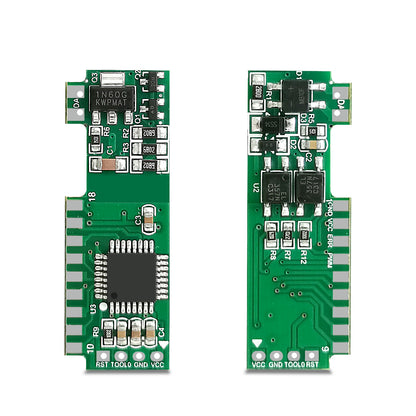

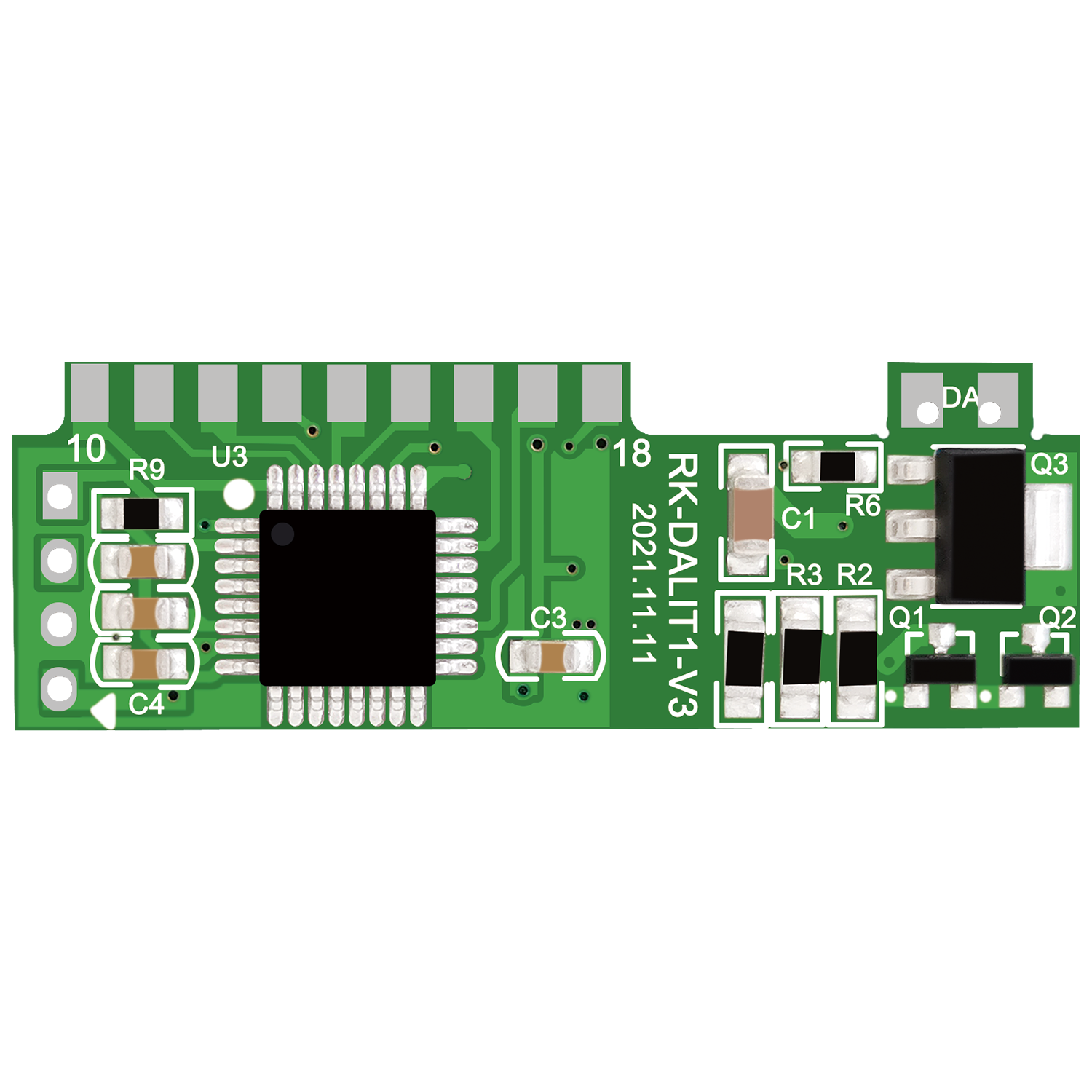

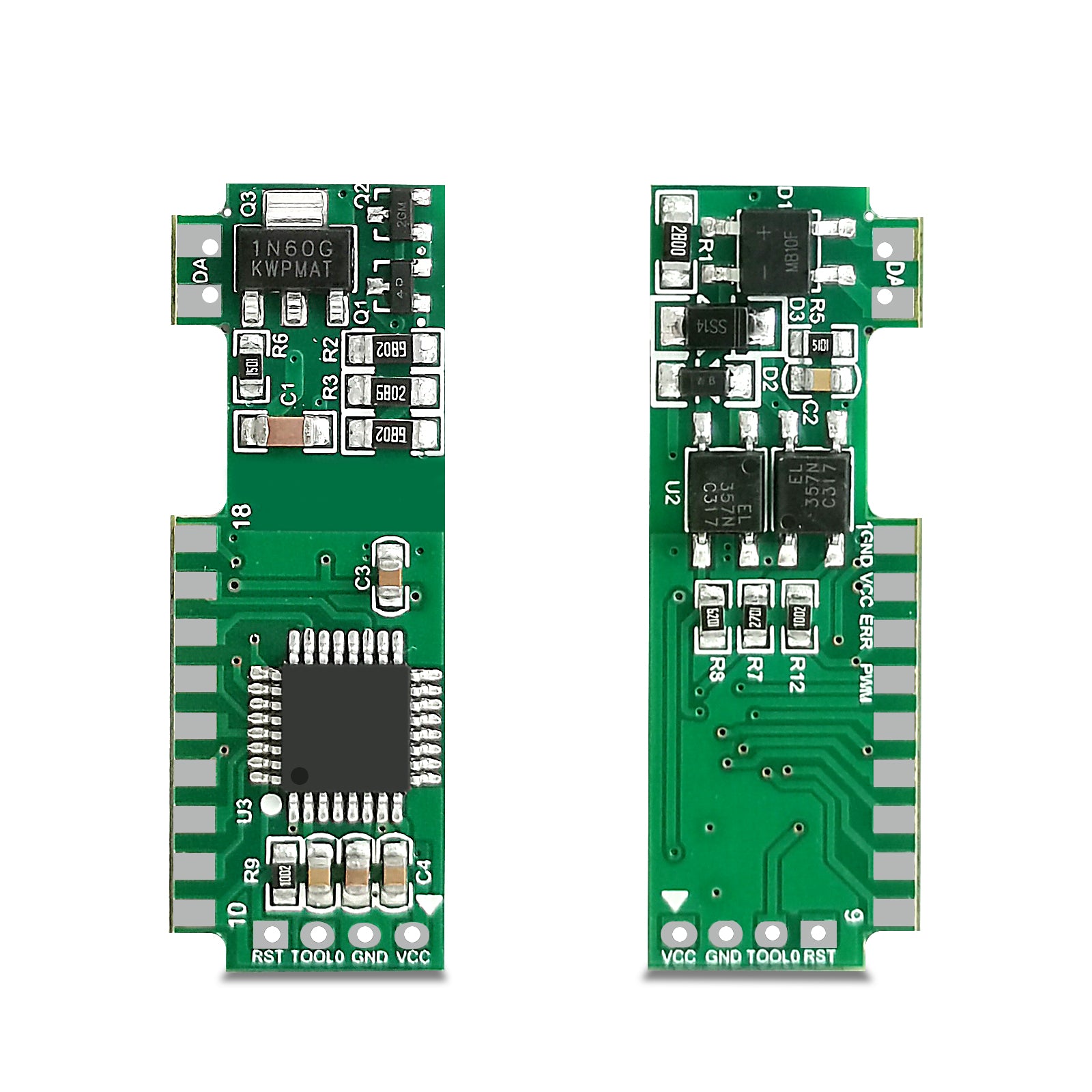

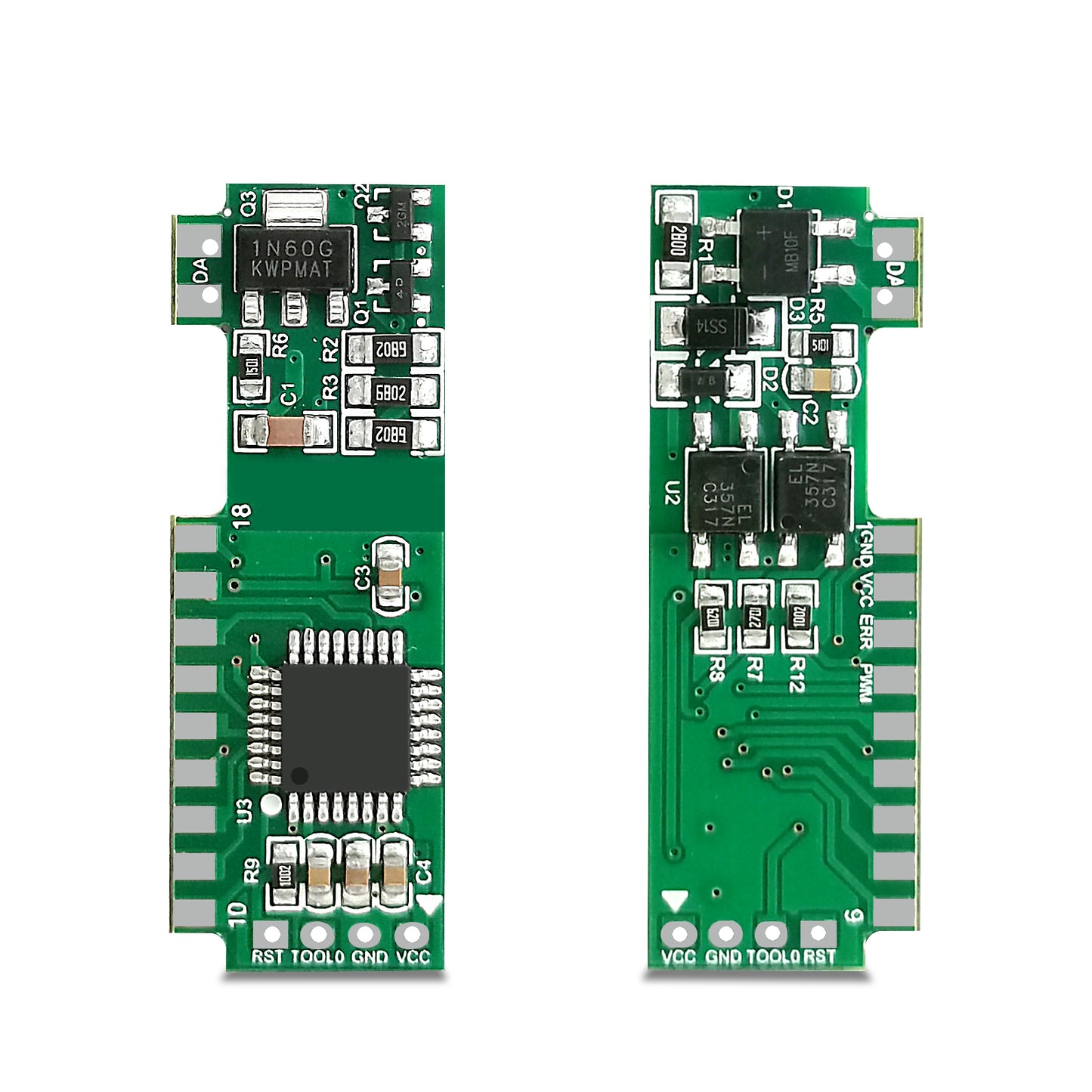

DALI-2 RGBCW DALI Interface Module for DALI2 RGBCW Driver

Key Features

• Model: RK-DALIT1-V3-RGBCW
• Supported Protocols: IEC62386-101, IEC62386-102, IEC62386-207, IEC62386-209.
• Supported Functions: DALI-2 dimming and color tuning (Tc mode, xy color coordinate mode).
• Power Supply: DC 5V, higher than 20mA. DALI Interface: 9.5V-22.5V, 1.9mA, Protected against accidental connection to 220V high voltage.
• Output PWM: 5 channels PWM, 4kHz，dimming range from 0.1% to 100% (frequency and minimum brightness can be customized, minimum dimming depth is 0.1%).
• Working Temperature: -40~85 °C.

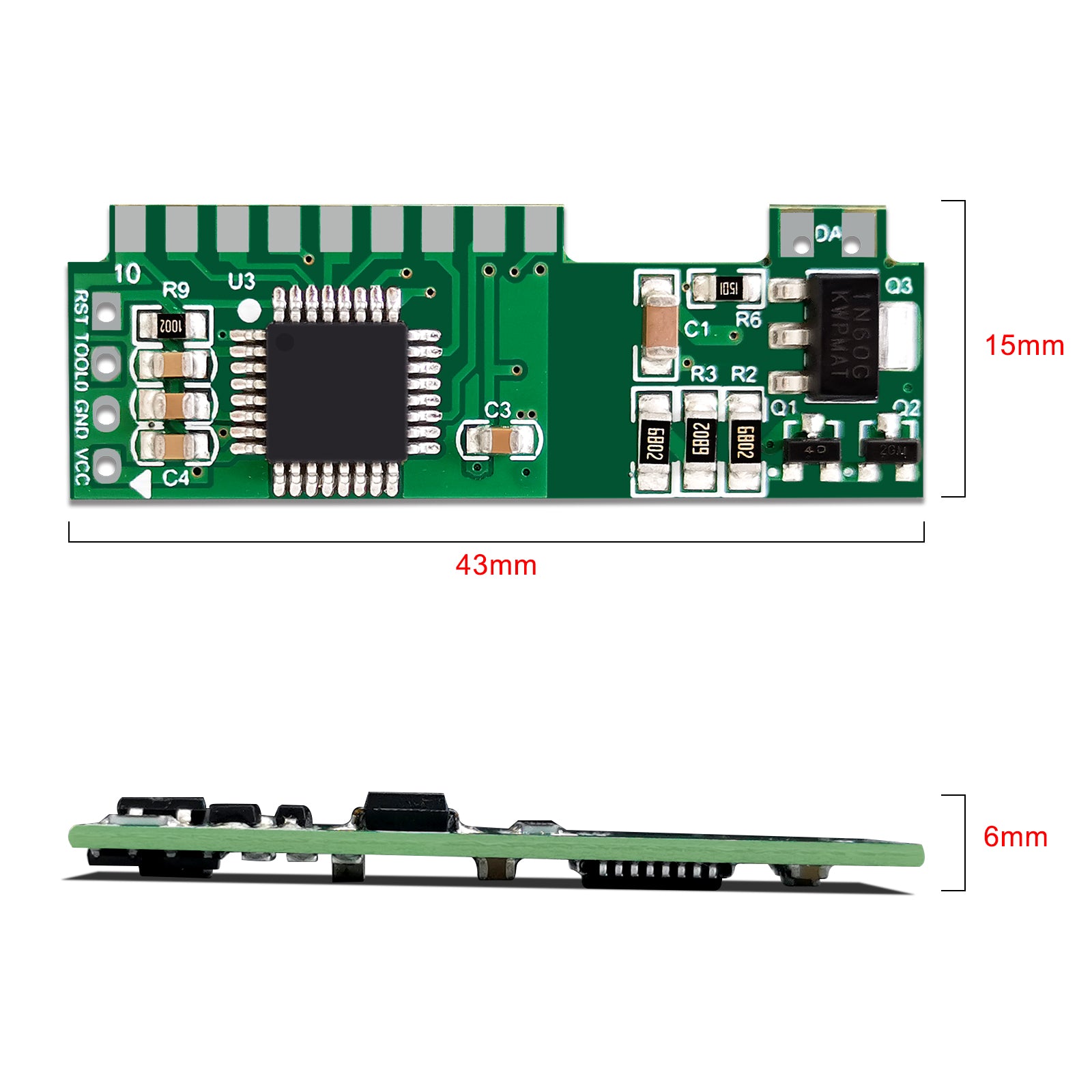

• Board Size: 43X15X6mm. Installation Method: Gold finger/Pin header. DALI
• Certification: Compliant with DALI-2 certification standards, and we can assist customers in completing DALI-2 certifications.
• Compatibility: Be compatible with TRIDONIC, OSRAM,PHILIPS, Helvar, JUNG, ABB, Lutron andCrestron DALI control system, etc.

For bulk purchases, the price is negotiable.
