DALI-2/PushDim/0-10V 3-in-1 DT6 DALI Solutions Module Module

Key Features

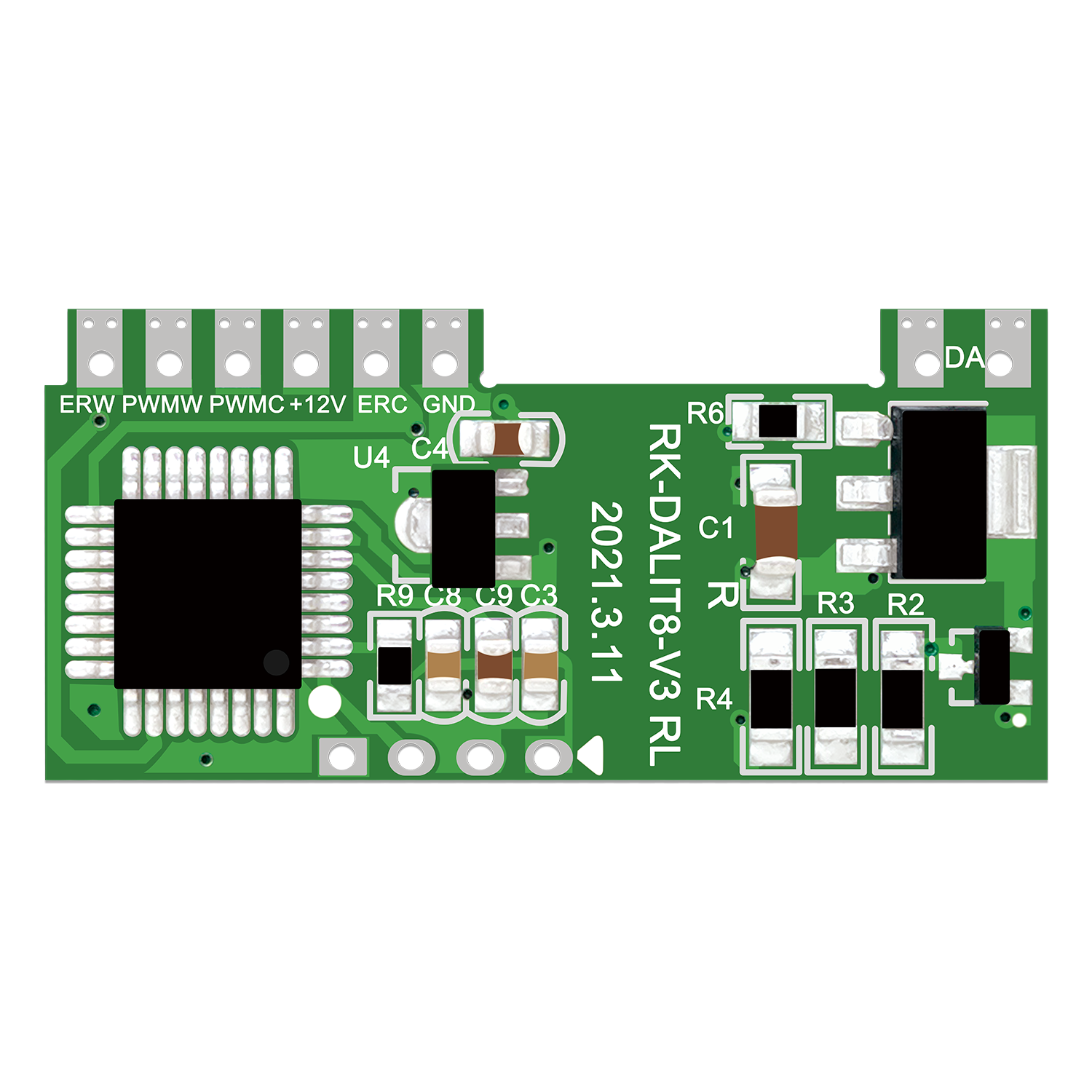

• Model: RK-DALIT8-V3-010V
• Supported Protocols: IEC62386-101, IEC62386-102, IEC62386-207
• Supported Functions: DALI-2 dimming, PushDim（be compatible with Tridonic), 0-10V.
• Power Supply: DC7V~15V, higher than 20mA.
• DALI Interface: 9.5V-22.5V, 1.9mA, Protected against accidental connection to 220V high voltage.
• Output PWM: 1 channel PWM, 4kHz，dimming range from 0.1% to 100% (frequency and minimum brightness can be customized, minimum dimming depth is 0.1%).

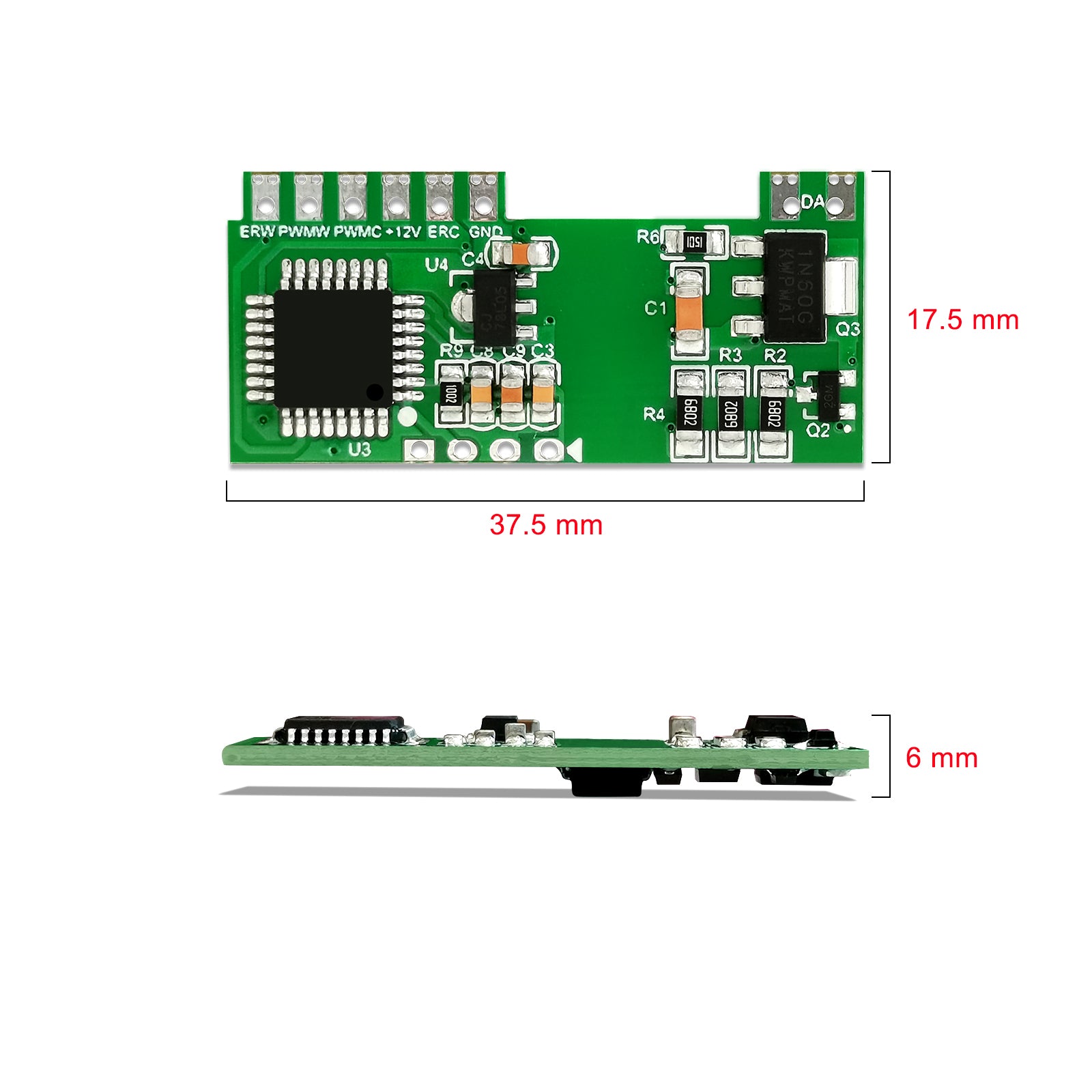

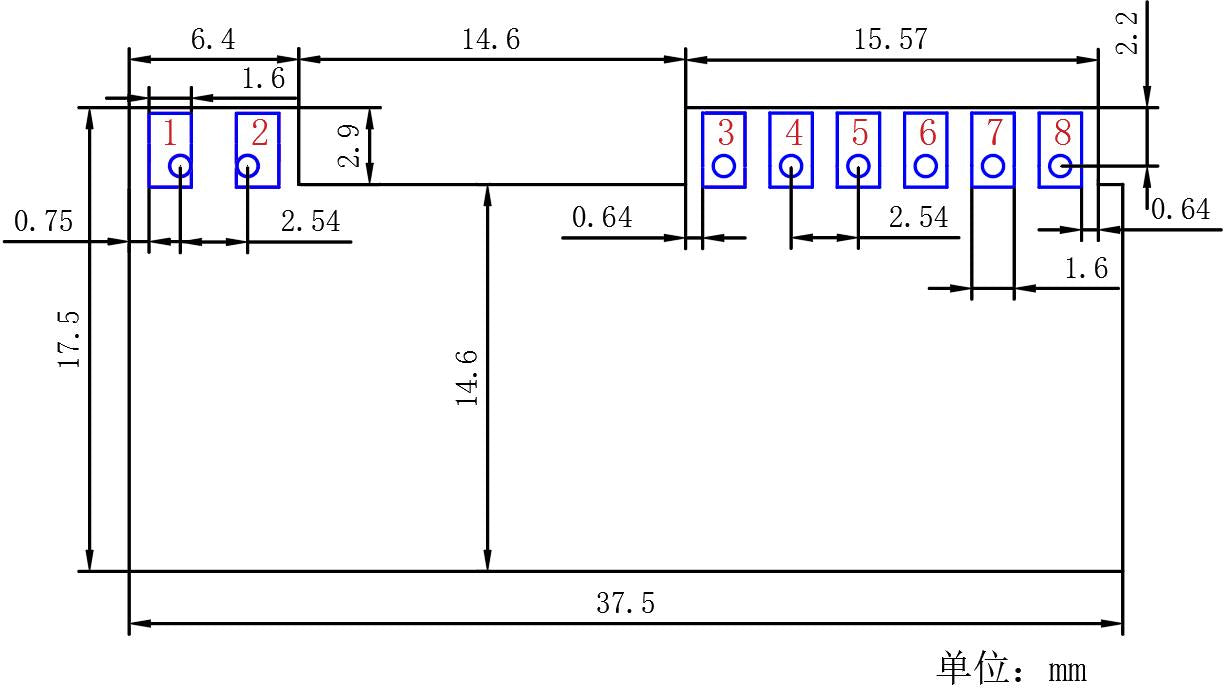

• Working Temperature: -40~85 °C. Board Size: 37.5X17.5X6mm.
• Installation Method: Gold finger/Pin header
• DALI Certification: Compliant with DALI-2 certification standards, and we can assist customers in completing DALI-2 certifications.
• Compatibility: Be compatible with TRIDONIC, OSRAM, PHILIPS,      Helvar, JUNG, ABB, Lutron and Crestron DALI control system, etc.
