Supported Functions: DALI-2 dimming, DALI-2 tunable color temperature, PushDim.
Power Supply: DC7V~15V, higher than 20mA.
DALI Interface: 9.5V-22.5V, 1.9mA, Protected against accidental connection to 220V high voltage.
Output PWM: 2 channels PWM , 4kHz, dimming range from 0.1% to 100% (frequency and minimum brightness can be customized, minimum dimming depth is 0.1%).
Working Temperature: -40~85 °C.

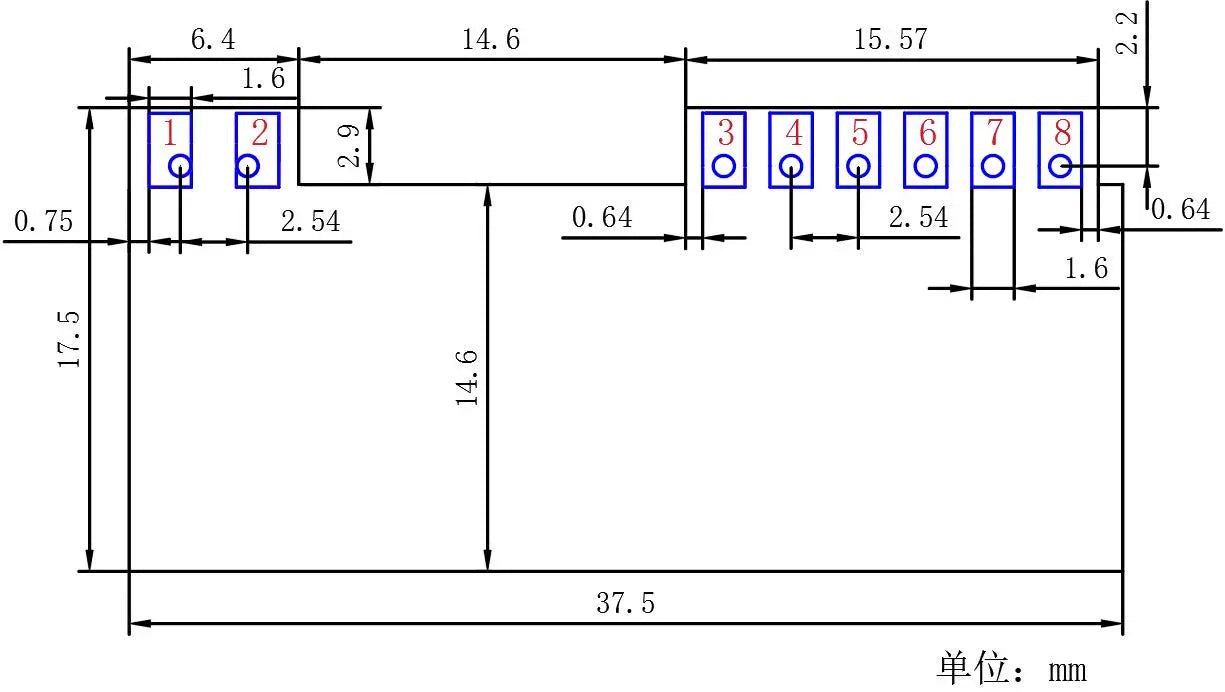

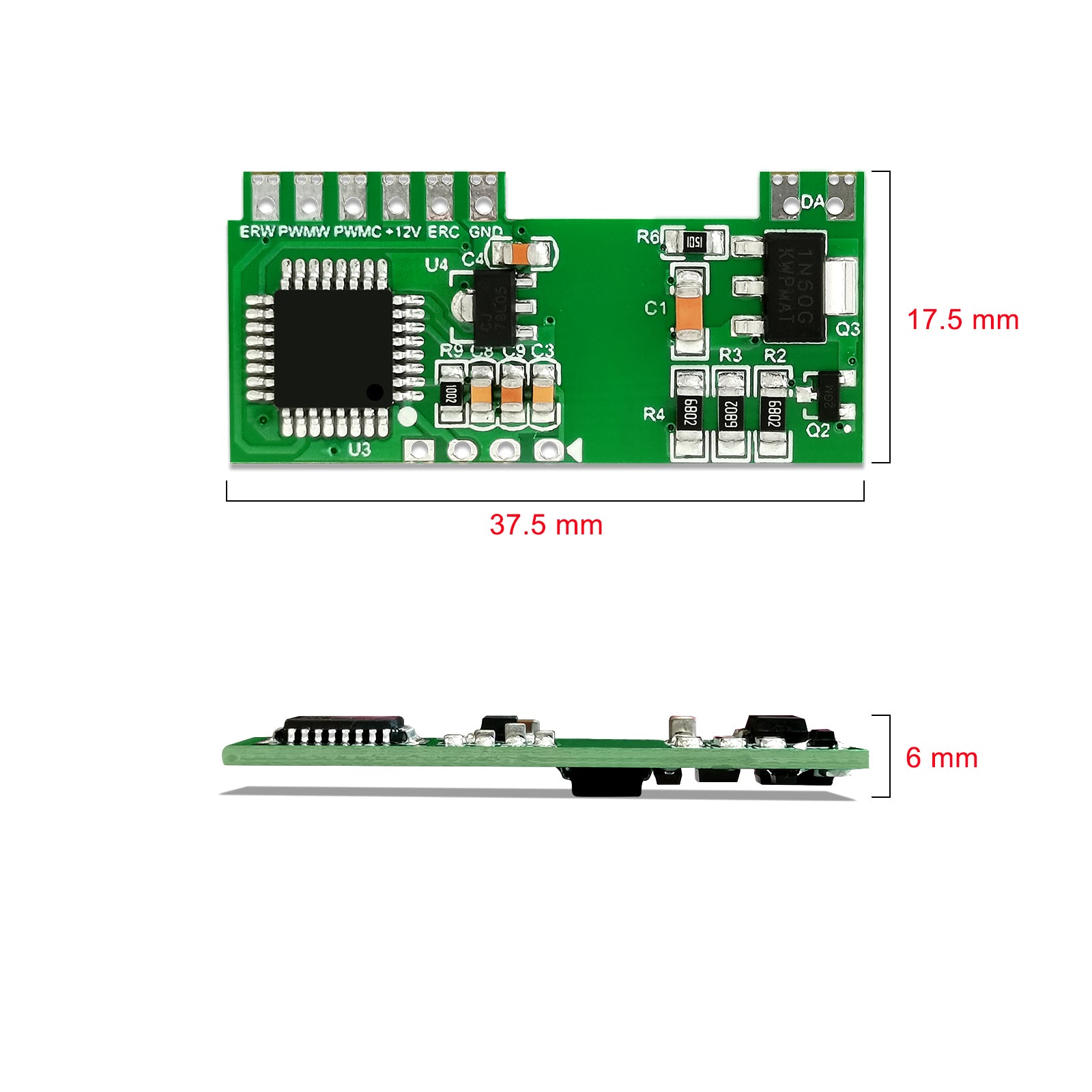

Board Size: 37.5X17.5X6mm.
Installation Method: Gold finger/Pin header.
DALI module converts the international standard DALI protocol signal into a PWM signal, which is applied to the LED two-way color temperature switching power supply to realize the DALI system control mode. Two PWM complementary outputs, the maximum power of any color temperature output is consistent with the maximum output power of a single channel, the default physical color temperature range is 2700K-6500K, the physical color temperature range can be changed, and the dimming range is 1%~100%.
