Power Supply: DC7V~15V, higher than 20mA. DALI Interface: 9.5V-22.5V, 1.9mA, Protected against accidental connection to 220V high voltage.
Output PWM: 1 channel PWM, 4kHz，dimming range from 0.1% to 100%(frequency and minimum brightness can be customized, minimum dimming depth is 0.1%).
Working Temperature: -40~85 °C.

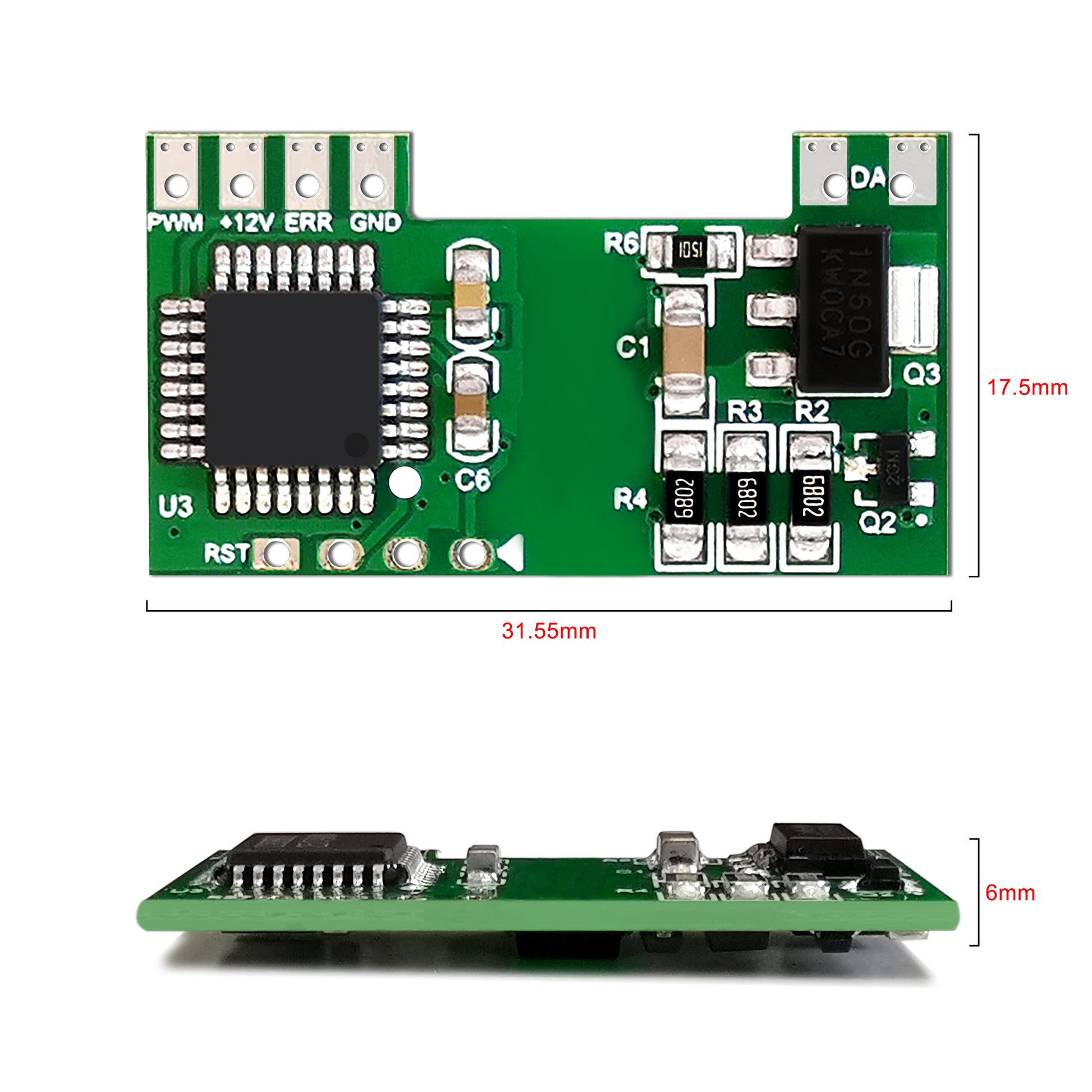

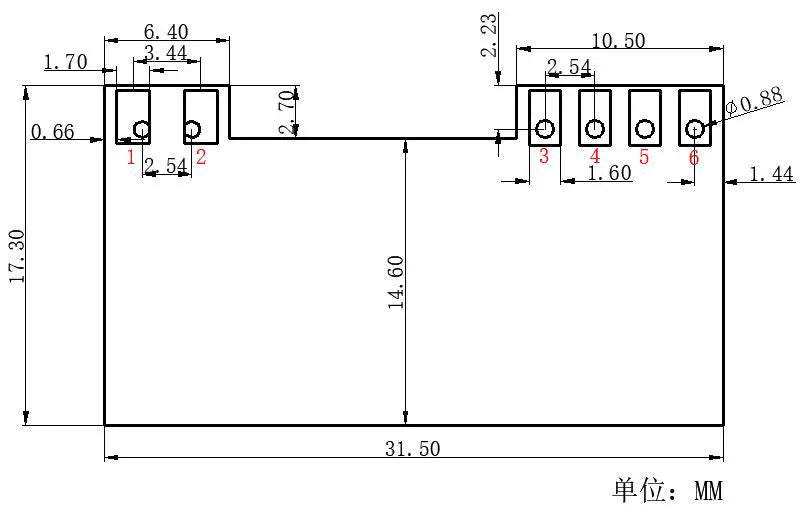

Board Size: 31.5X17.5X6mm.
Installation Method: Gold finger/Pin header.

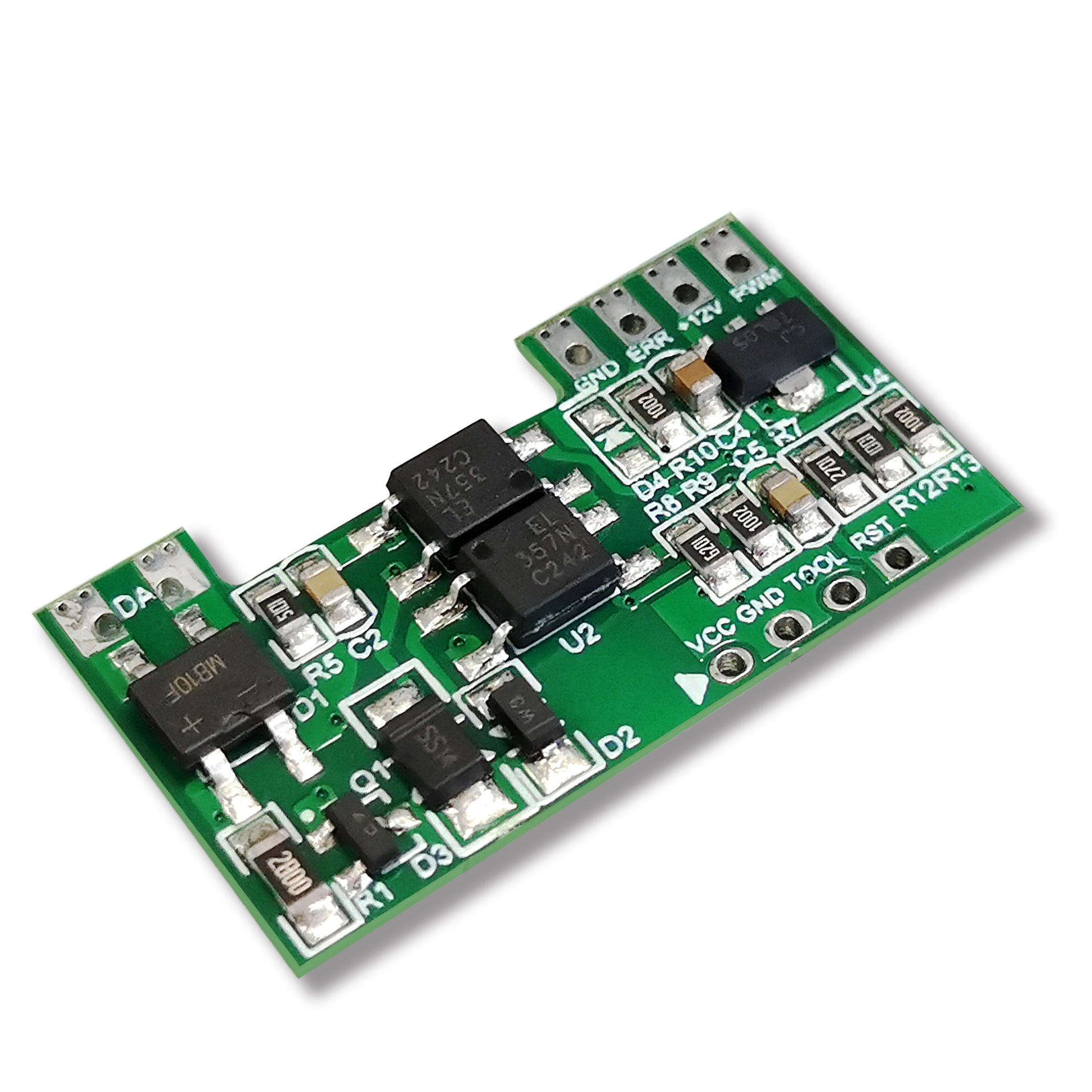

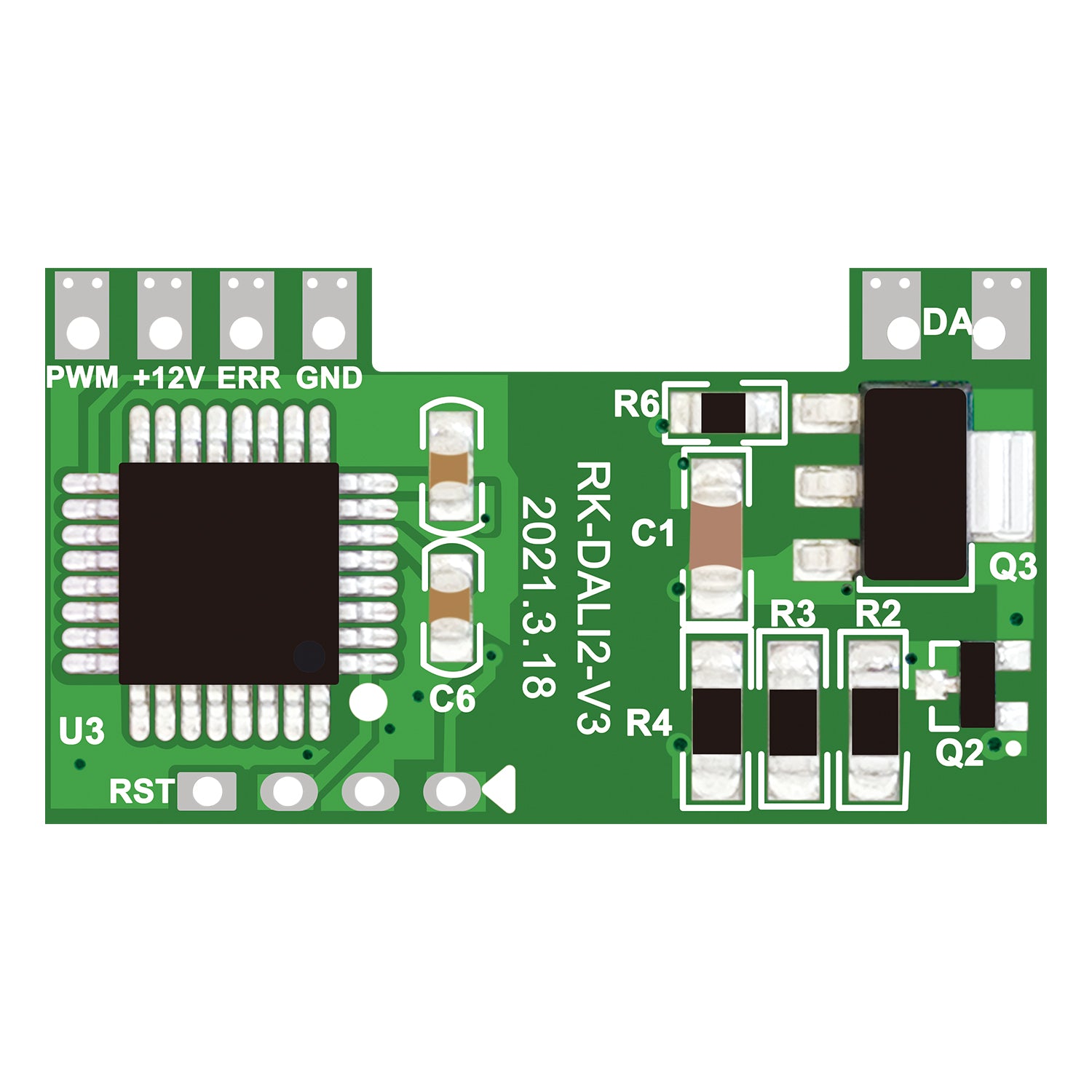

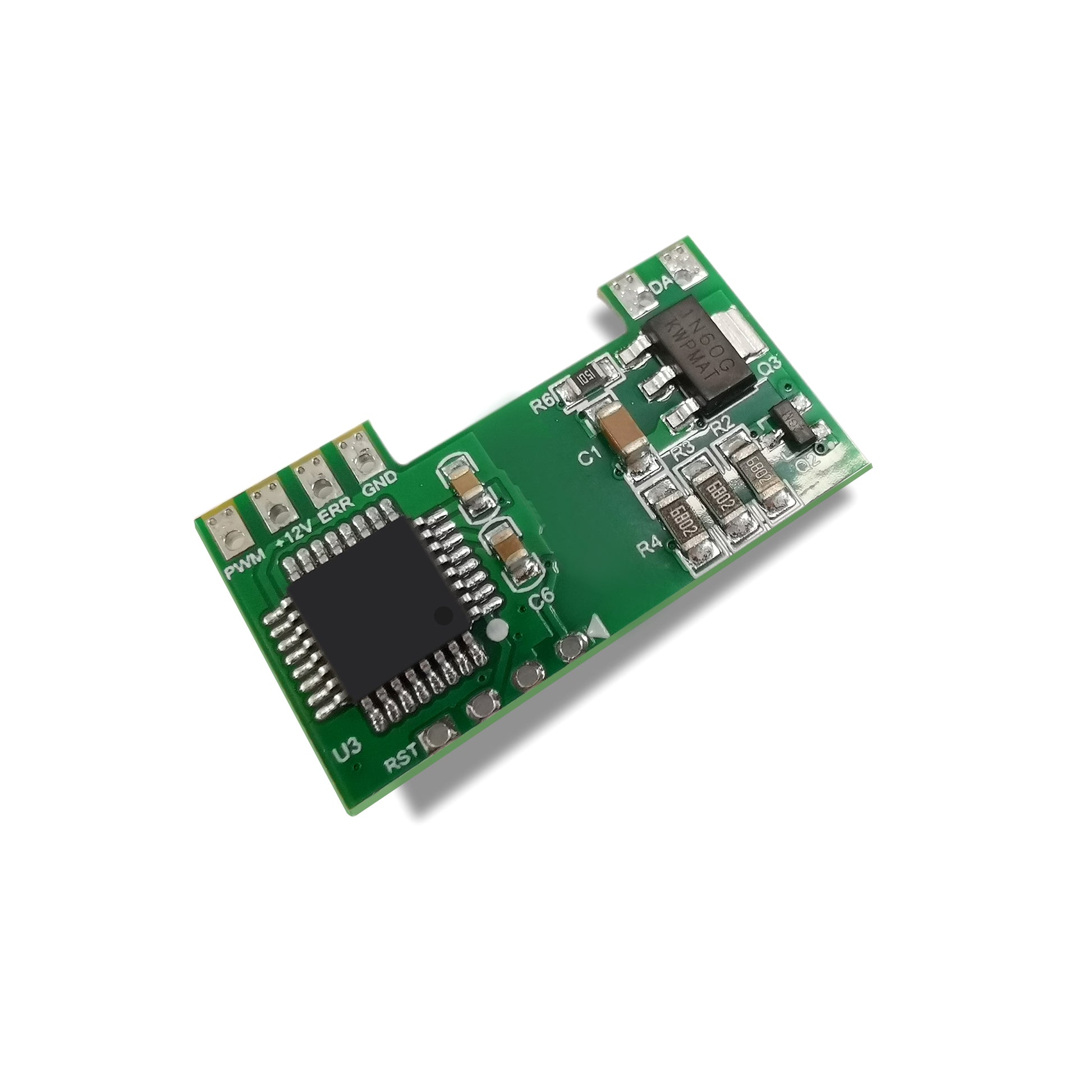

This DALI module converts the international standard DALI protocol signal into a PWM signal, which is applied to the LED switching power supply to realize the DALI system control mode.
