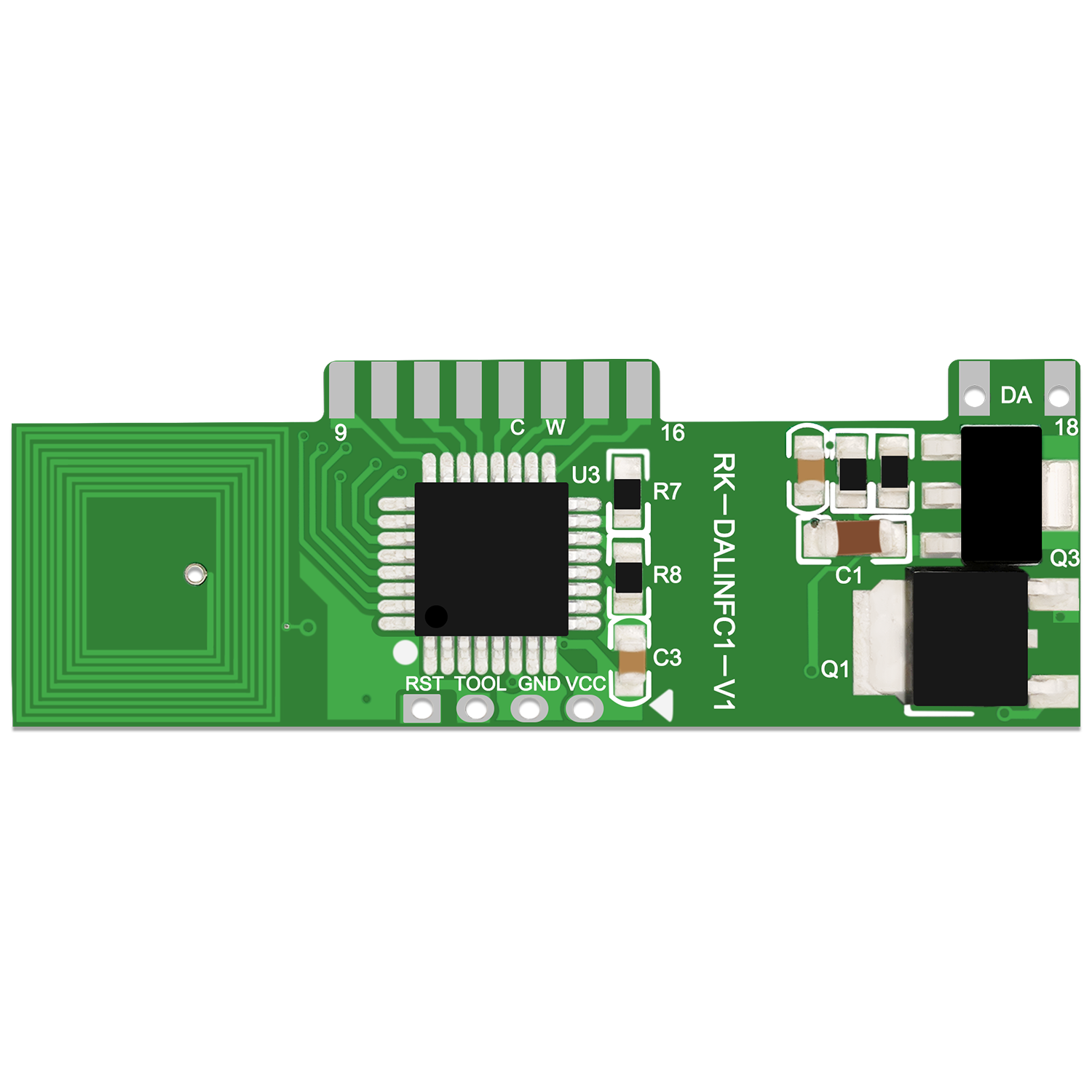

DALI-2 D4i NFC Module for DALI LED Drivers

Key Features

• Model: RK-DALINFC1-V1
• Supported Protocols: IEC62386-101, IEC62386-102, IEC62386-207, IEC62386-251, IEC62386-252, IEC62386-253.

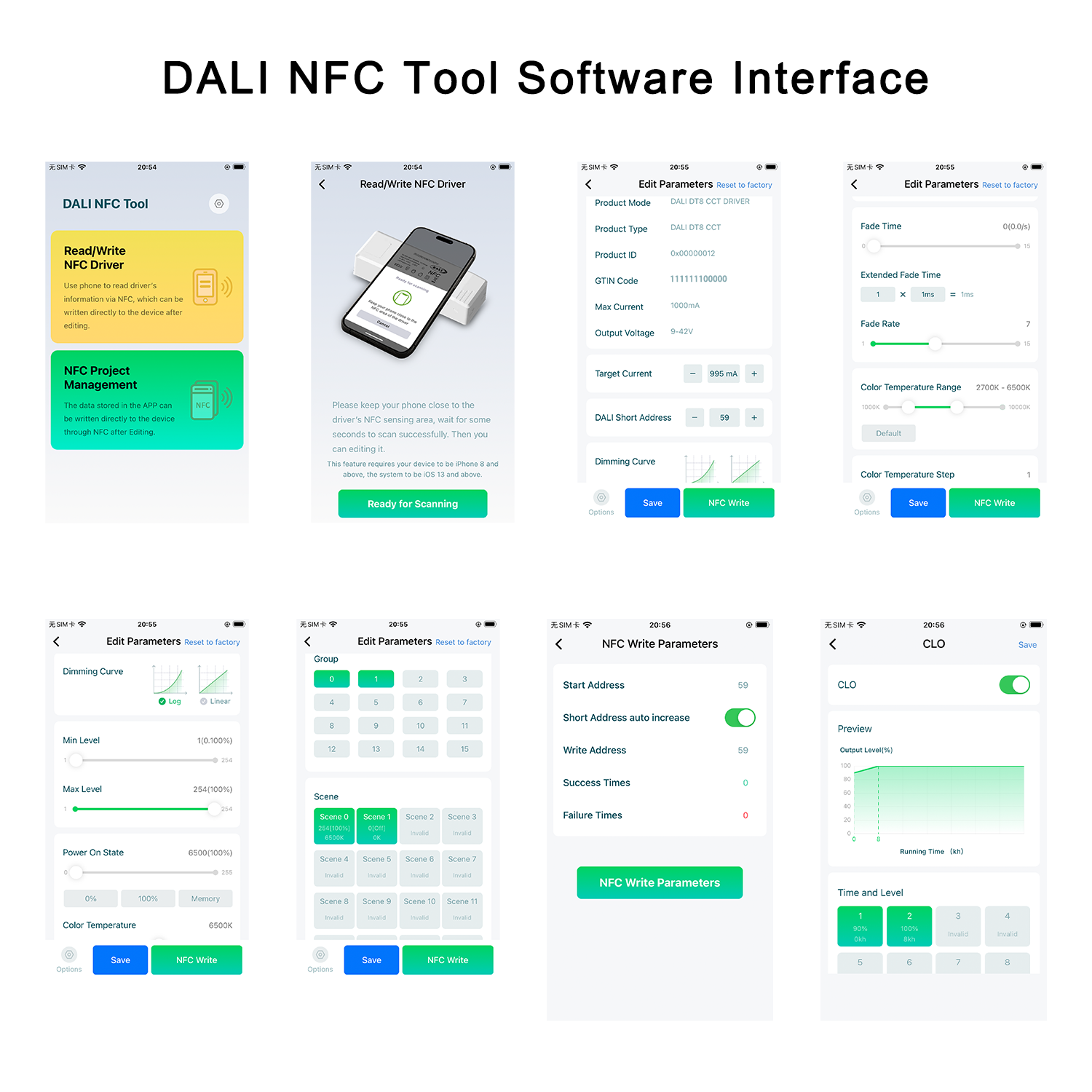

• Supported Functions: DALI-2 DT6 dimming, DT8 color temperature adjustment, D4i, PushDim; it adopts the ISO15693 international standard and features NFC settings, current reading, and various configurable parameters of DALI-2.
• Power Supply: DC 5V, higher than 20mA.
• DALI Interface: 9.5V-22.5V, 1.9mA, Protected against accidental connection to 220V.
• Output PWM: 1 channel PWM, dimming range from 0.1% to 100% (frequency and minimum brightness can be customized, minimum dimming depth is 0.1%).
• Working Temperature: -40~85 °C.
• Board Size: 51X17.5X6mm.
• Installation Method: Gold finger/Pin header.
• DALI Certification: Compliant with DALI-2 and D4i certification standards, and we can assist customers in completing DALI-2 and D4i certifications.
• Compatibility: Be compatible with TRIDONIC, OSRAM, PHILIPS, Helvar, JUNG, ABB, Lutron and Crestron DALI control system, etc.

For bulk purchases, the price is negotiable.
